Show Commands

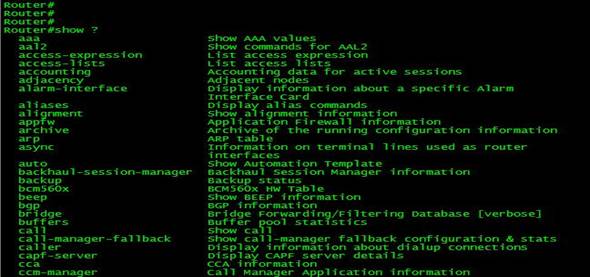

Show commands are used for various purposes such as management, configuration verification and viewing statistics of various protocols and processes in Cisco IOS. To view all the available show commands in Cisco IOS press ? after show. A brief output of show ? is shown in the picture below.
There are more sub-commands in each category, an output of show ip ospf ? shows different show commands that can be used to view various ospf statistics and parameters
Table below displays the most commonly used Show commands and their purpose
Show Command |
Purpose |
Show Version |
To display information about the currently loaded software along with hardware and device information |
Show running-config |
To display the contents of the current running configuration file |
Show startup-config |
To display the contents of the configuration stored in NVRAM |
Show ip interface brief |
Displays a summary of the usability status information for each interface |
Show ip protocols |
To display the parameters and current state of the active routing protocol process |
Show ip route |
To display the current state of the routing table |
An output of Show ip interface brief command is also shown below, this command is frequently used to monitor the status of an Interface.
Debug Commands
Cisco IOS Debug Commands are used for troubleshooting purposes. They display information about various router processes and operations. Using Debug commands information about traffic generated and received by the Router can also be viewed. Cisco IOS treats the Debug process as high-priority and it can consume significant amount of router resources thus extensive debugging in production networks is not encouraged. Debug tools are not recommended to be used for monitoring purposes instead debugging must only be used temporarily for troubleshooting and should be turned off as soon as the issues are identified.
By default Cisco IOS sends debug output to the console, when you want to view the debug output from the telnet session the following command must be specified in the privileged EXEC mode
Router# Terminal Monitor
Debug output may also be redirected to Internal buffer of a Cisco Router or to a Syslog Server. To do so we have to configure message logging using logging command in configuration mode.
Table below shows the logging command options and their explanation
logging on |
Turns on logging |
logging console [level]
|
Sends log messages to console |
logging buffered [level] |
Sends log messages to internal buffer memory |
logging monitor [level] |
Sends log messages to virtual terminal sessions |
logging trap [level] |
Sends log message to syslog server |
logging [ip-address] |
Specifies ip-address of the syslog server |
The level keyword specifies message severity levels. There are eight severity levels and logging at a particular level enables logging for that level and all levels below it.
Level |
Name |
0 |
Emergencies |
1 |
Alerts |
2 |
Critical |
3 |
Errors |
4 |
Warnings |
5 |
Notifications |
6 |
Informational |
7 |
Debugging |
Pressing ? after the debug keyword invokes the Cisco IOS help and all the debug command options are listed.
Figure below shows a debug output when the debug ip packet detail command is used. This command will show packets sourced from the router or destined to the router. To view the debug output of transit packets, Cisco Express Forwarding (CEF) switching must be disabled since debug only show output of process-switched packets. In the figure below the router received an ICMP echo request packet from 10.1.1.2 and it replied with an ICMP echo reply packet.
Show Command |
Purpose |
Show Version |
To display information about the currently loaded software along with hardware and device information |
Show running-config |
To display the contents of the current running configuration file |
Show startup-config |
To display the contents of the configuration stored in NVRAM |
Show ip interface brief |
Displays a summary of the usability status information for each interface |
Show ip protocols |
To display the parameters and current state of the active routing protocol process |
Show ip route |
To display the current state of the routing table |
In this lesson we covered general overview of the Cisco IOS Show and Debug commands. Any Engineer who works with Cisco IOS devices must know the usage of these commands as there are important tools used for troubleshooting issues.
